Curtain Wall Processing Center

Model: LGSZ4-CNC-4000

Product Details

Suitable for aluminum profile different kinds of grooves, hole processing.

Imported high-speed motor spindle, rotary stable, low noise, and strong cutting ability.

This machine equips 5 knives. And could change automatically.

High precision linear guide rail, ball screw, gear rack, imported servo motor. All these will ensure moving smoothly, positioning, and processing higher accuracy.

The working table could rotary among 90degree, 0 degrees, and -90 degrees. One-time clamping could finish three sides processing.

Voltage 380V/50HZ
Input power 11KW
Air resource pressure 0.5-0.8Mpa
X-axis travel 3200mm
X-axis speed 0-60m/min
Y-axis travel 400mm
Y-axis speed 0-15m/min
Z-axis travel 400mm
Z-axis speed 0-15m/min
Main spindle rotary 18000-24000r/min
Main spindle power 9KW
Working table position -90 degrees, 0 degrees 90 degree
Processing range 380x380x3200mm
Overall dimension 4400mm x 1500mm x1800mm

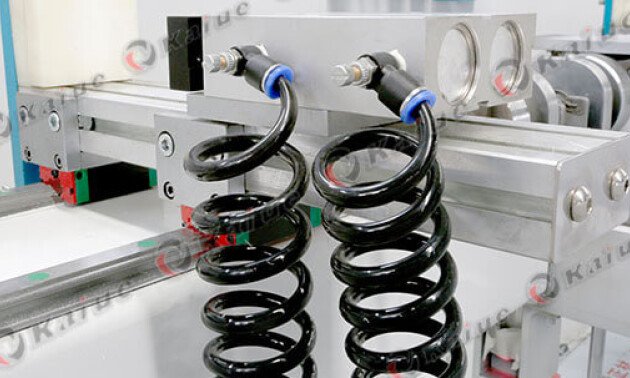

Curtain Wall Processing Center Details 1
+ 7

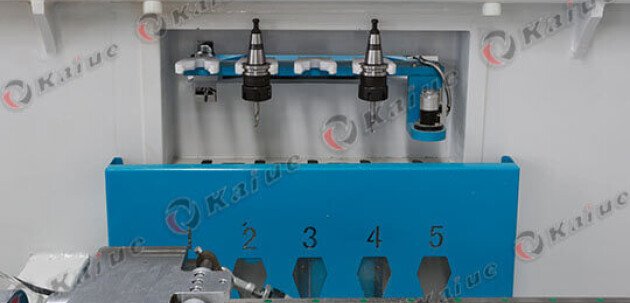

Curtain Wall Processing Center Details 2
Curtain Wall Processing Center Details 3

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.


This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.


T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.


We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.


Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.


12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.


Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.


They are mechanical processing parts. They are the main structure of the machines. Such as the machines’ head, base and some other parts which consist of the main part of the machine. They like human’s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.
