Double Head Cutting Saw

$1,000.00





Double Head Cutting Saw Description



This machine is used for aluminum & uPVC profile cutting.

The saw head could change automatically between 45 and 90 degrees.

A high-accuracy spindle directly connects the blade. running smoothly and reliably.

A high-accuracy linear bearing guide rail could keep the machine running accurately in long term.

Cutting angle error 5′

Cutting surface flatness 0.1mm

Has a corner connector cutting function

Find the best Double Head Cutting Saw for sale at a China factory lower cost price.





Voltage380V/50HZ
Input power3.55KW
Air resource pressure0.5-0.8Mpa
Air consumption200L/min
Rotary speed2800r/min
Blade specificationφ450
Cutting profile length480-4200mm
Cutting profile widthMax. 120mm
Cutting profile heightMax. 200mm
Cutting angle45 and 90 degrees
Overall dimension5700mm x 1700mm x1450mm

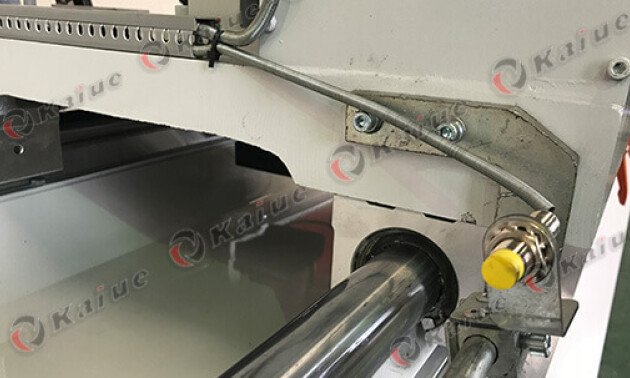

Double Head Saw 450 Details 1
+ 6

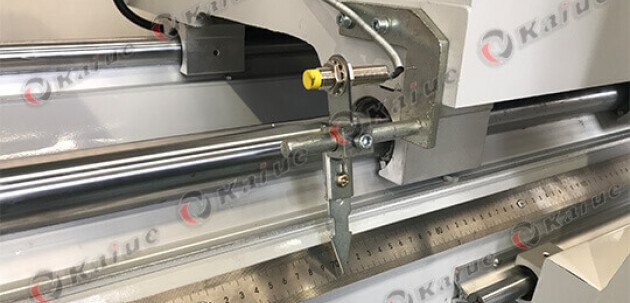

Double Head Saw 450 Details 2

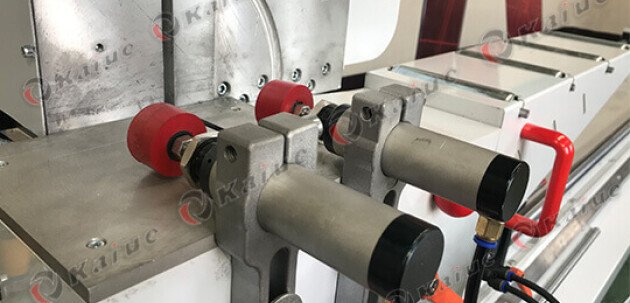

Double Head Saw 450 Details 3
